TEA BREWER PARTS

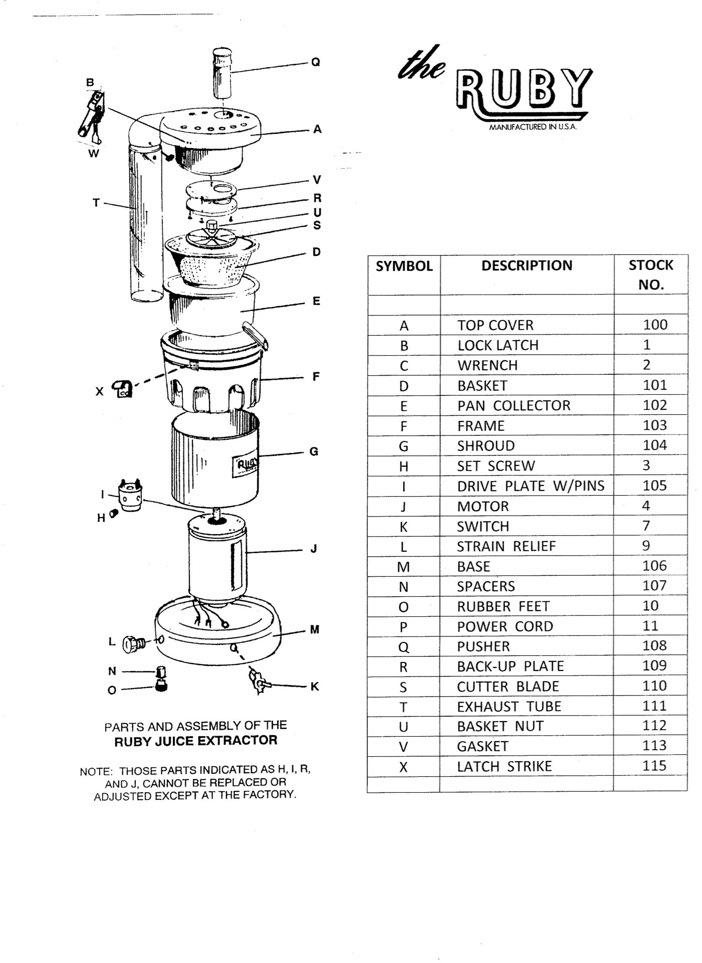

Ruby Juicer Parts Diagram
SYMBOL DESCRIPTION STOCK NO. PRICE
A TOP COVER 100 $360.00
B LOCK LATCH (small) 1 $34.00
B-2 LOCK LATCH (large ) 1 $29.00
C WRENCH 2 $29.00
D BASKET 101 $209.00
E PAN COLLECTOR 102 $118.00
F FRAME 103 $242.00
G SHROUD 104 $89.00
H SET SCREW 3 (SET) $23.00
I DRIVE PLATE W/PINS $111.00
105
J MOTOR 4 $250.00
K SWITCH 7 $26.00
L STRAIN RELIEF 9 $24.00
M BASE 106 $179.00
N SPACERS 107 $19.00
O RUBBER FEET 10 $19.00
P POWER CORD 11 $34.00
Q PUSHER 108 $79.00
Q-2000 PUSHER - 2000 108 $89.00
R BACK-UP PLATE 109 $95.00
S CUTTER BLADE 110 $165.00
T EXHAUST TUBE 111 $50.00
U BASKET NUT 112 $31.00
V GASKET 113 $24.00
X LATCH STRIKE 115 $22.00
